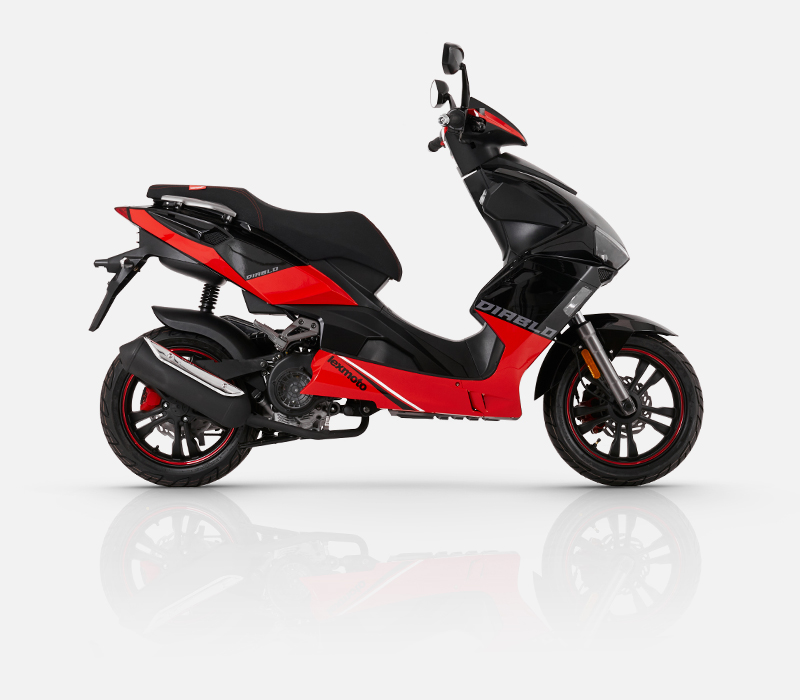

Lexmoto Diablo 125

Lexmoto Diablo 125

Lexmoto Diablo 125 Overview

Sharp, sporty styling with an affordable price tag has made the Diablo a go-to choice for all learner legal riders making their own way in life. The racy 4 stroke engine packs a lot punch, and pair that with it`s lightweight frame the Diablo will have you flying off the line. A combined braking system with hydraulic disc brakes front and rear bring you to a safe and controlled stop every time. There`s a digital display and striking LED headlight unit that allows you to ride safely and illuminate the road ahead.


Please Note

*Price excludes OTR (On The Road) costs

Purchase a Bike

Please enter your details and one of our dealers will contact you.

Lexmoto parent company: Llexeter Ltd., Units 15-18, Greendale Business Park, Woodbury Salterton, Devon, EX5 1EW, 0844 567 8887. This data will be processed lawfully based on consent. The following information is collected to be forwarded on to a participating dealer, which will then contact you regarding the purchase of the vehicle: Name, E-mail address, Telephone, Postcode.

If you wish to lodge a complaint with the supervisory authority, please refer to the following website: https://ico.org.uk/

Version 1

Lexmoto Diablo 125 Features

Twist’n'Go
A Great option for new riders this automatic option simply requires a throttle to be used without the need for clutch and gear use.
Underseat Storage
This bike comes with handy under-seat storage that lets you keep belongings safe and dry.
Commuter Friendly
Make your commute easy, with this commuter friendly bike.
4 Stroke Reliability
4 Stroke engines require less maintenance than their 2 stroke counterparts. With a 4 stroke engine you will need to check the engine oil but will not have to add oil into the fuel. You also get a deeper sound from a 4 stroke engine unlike the 'Hairdrier' sound that is produced from 2 stroke engines.

Finance available on all of our models

Enquire Now!

Summary image

Specifications

OVERVIEW
Model Name
Lexmoto Diablo 125
Model Code
LJ125T-9M-E5
Fuel Capacity
6 Litres
PERFORMANCE
Max Power
(8.6 hp) 6.4kW @7500rpm
Max Torque
8.6Nm @ 6000rpm
Max Speed
66 MPH (105 KMH)
ENGINE
Engine Type
Single Cylinder
Engine Stroke
4 Stroke
Engine Cooling
Air Cooled
Displacement
125 cc
Bore x Stroke
5.3 x 5.8
Gear Type
Twist and Go
Drive Type
Belt
Start Type
Electric Start
Ignition Type
EFI
Battery Voltage
12
Compression Ratio
10.5:1
WHEELS
Front Brake
Hydraulic Disc
Rear Brake
Hydraulic Disc
Front Tyre
120/60-13
Rear Tyre
130/60-13
Tyre Brand
CST
Tyre Model
Tubeless
Front Suspension
Telescopic Forks
Rear Suspension
Single Shock Absorber
DIMENSIONS
Length
1840 mm
Width
690 mm
Height
1150 mm
Seat Height
790 mm
Wheelbase
1305 mm
Mass in Running Order
114 kg
Maximum Laden Mass
274 kg
