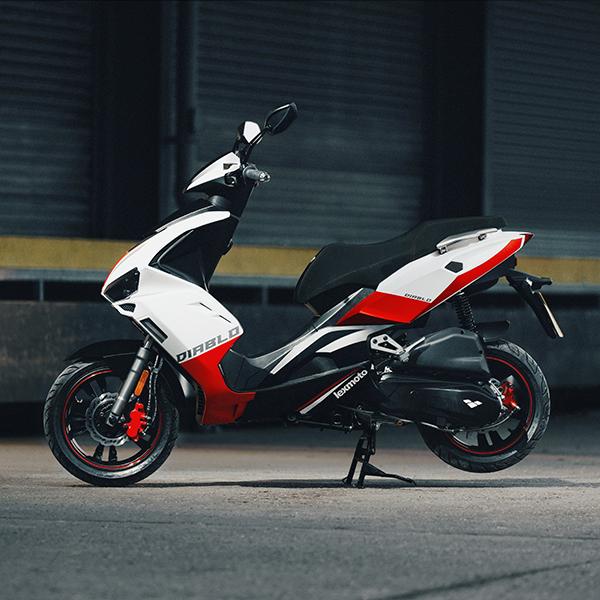

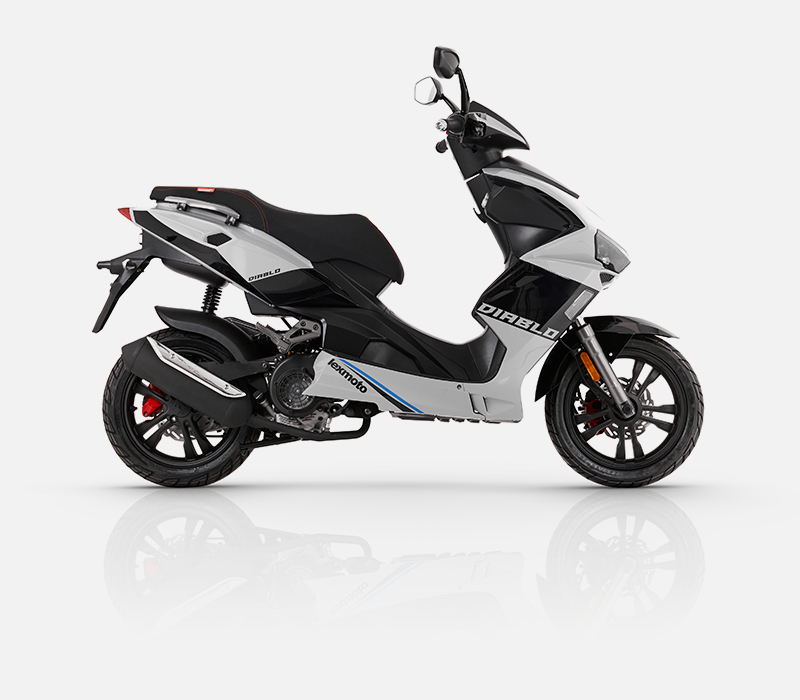

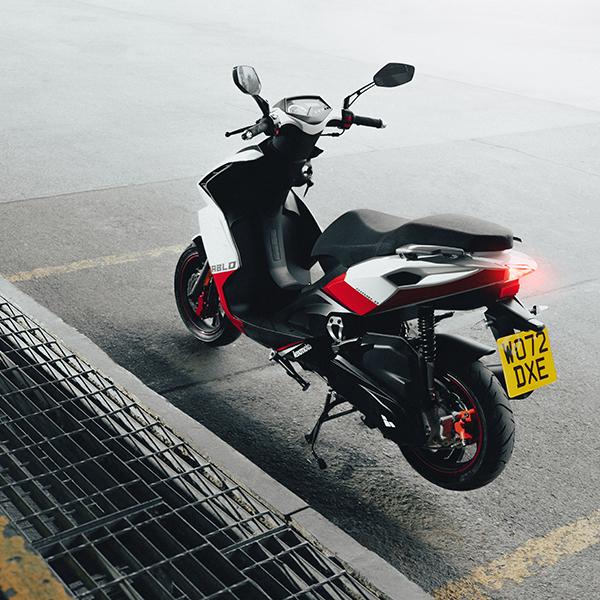

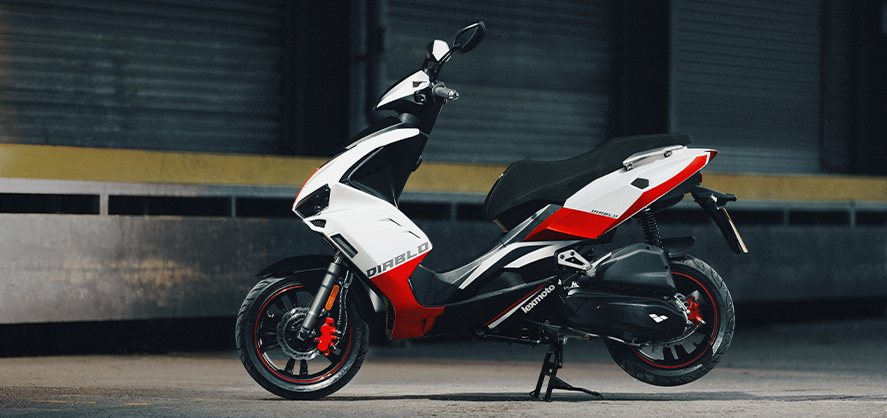

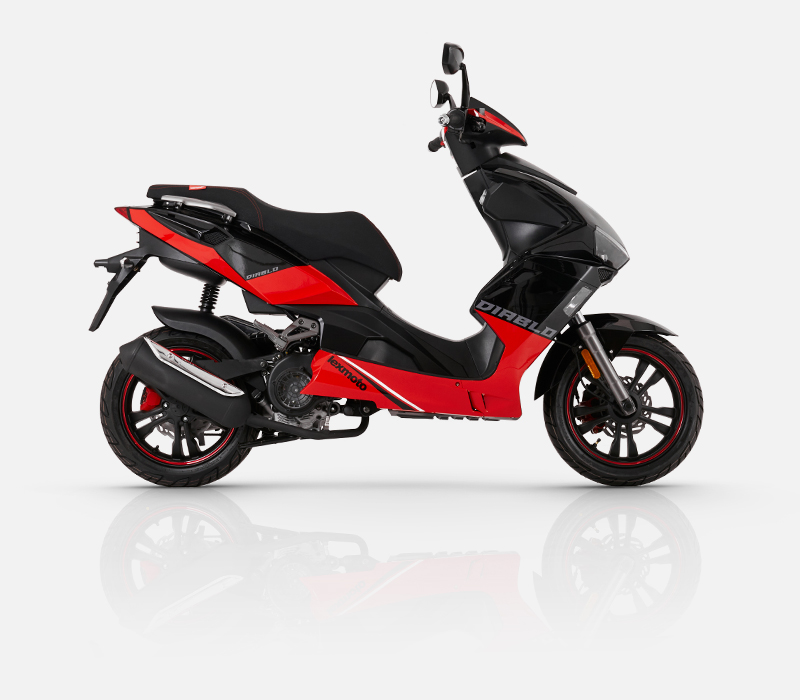

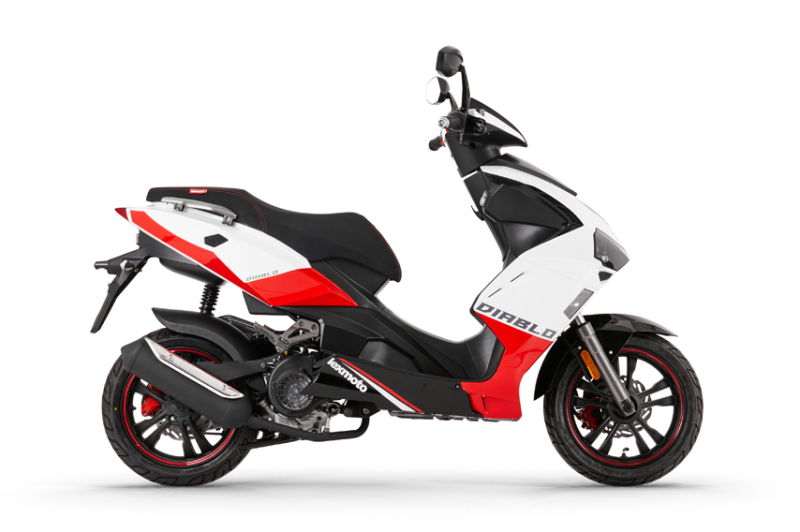

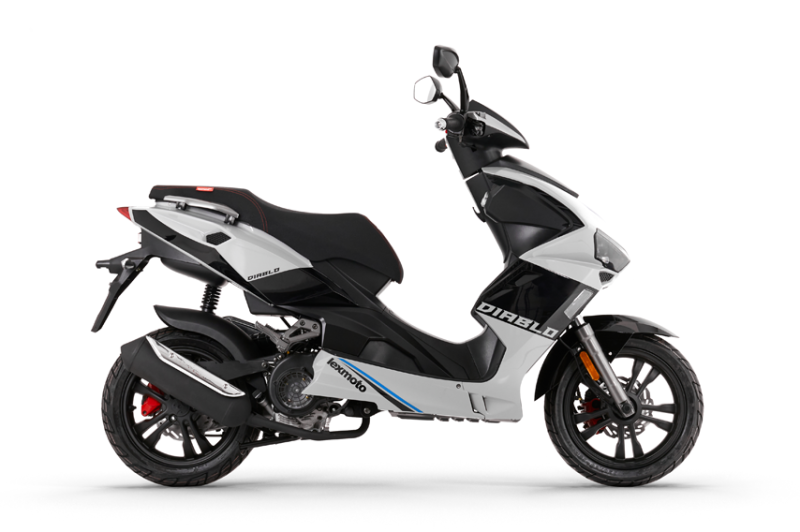

Lexmoto Diablo 125 Overview

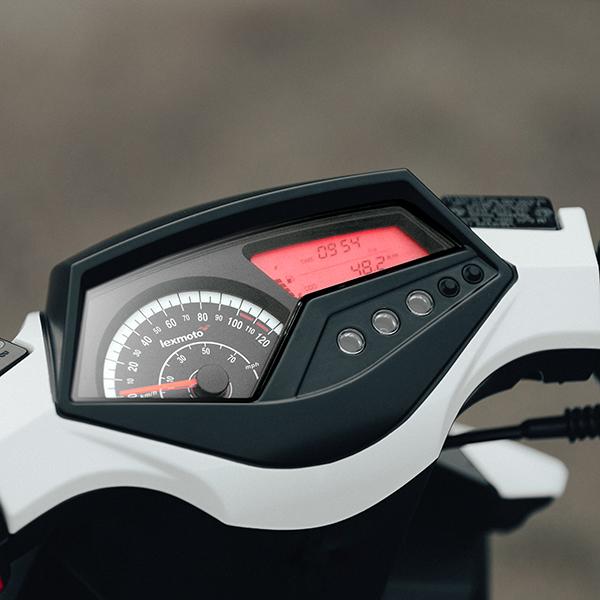

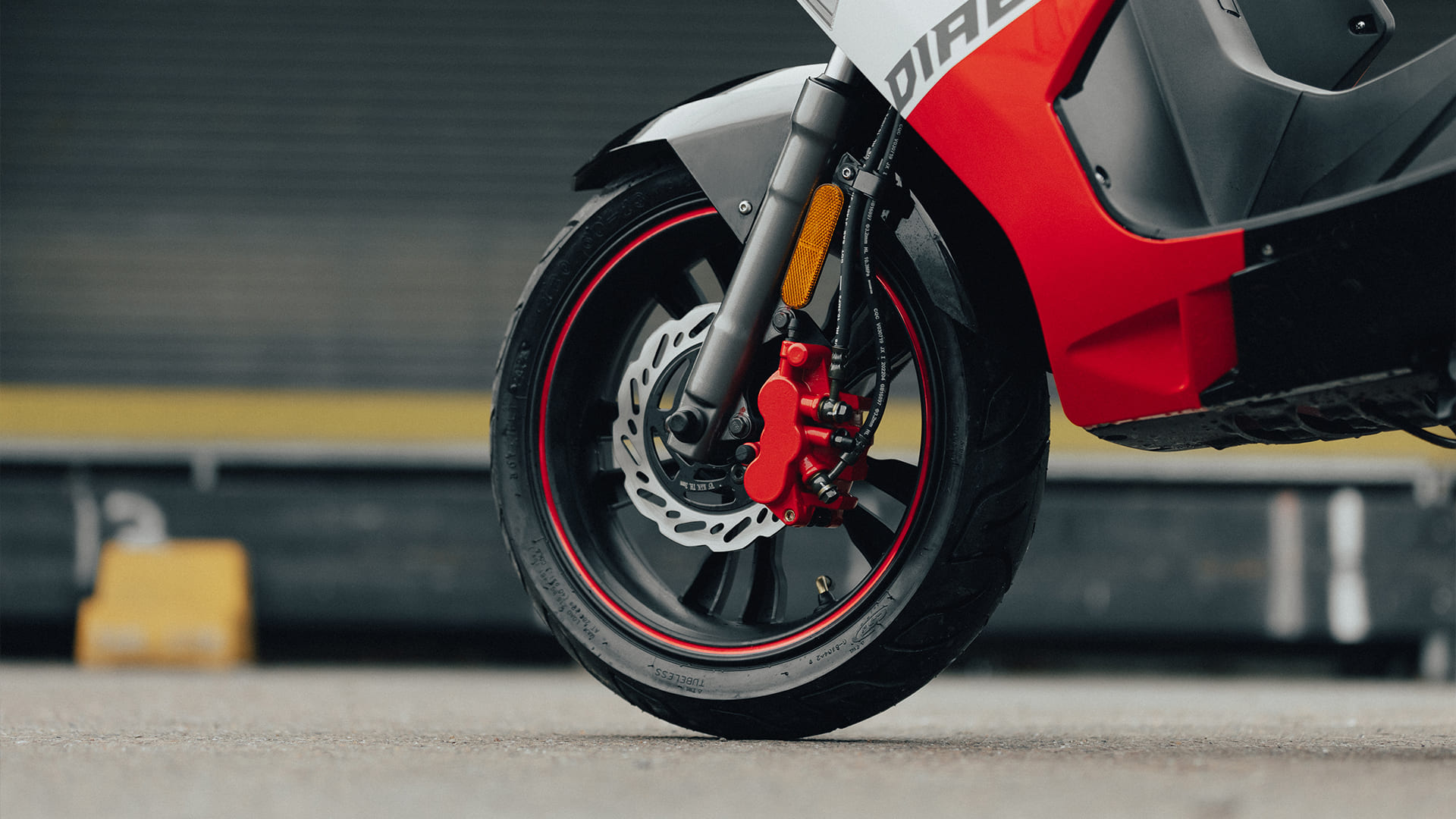

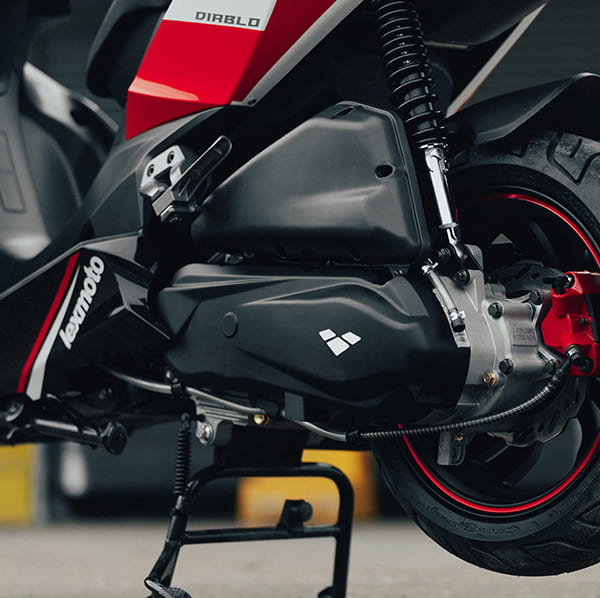

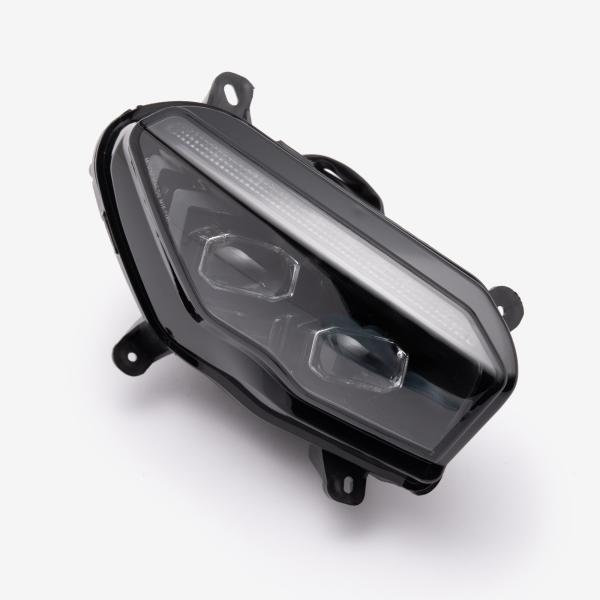

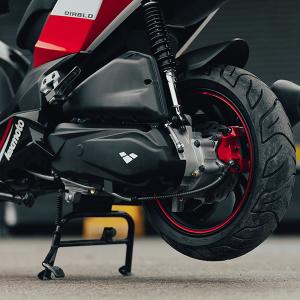

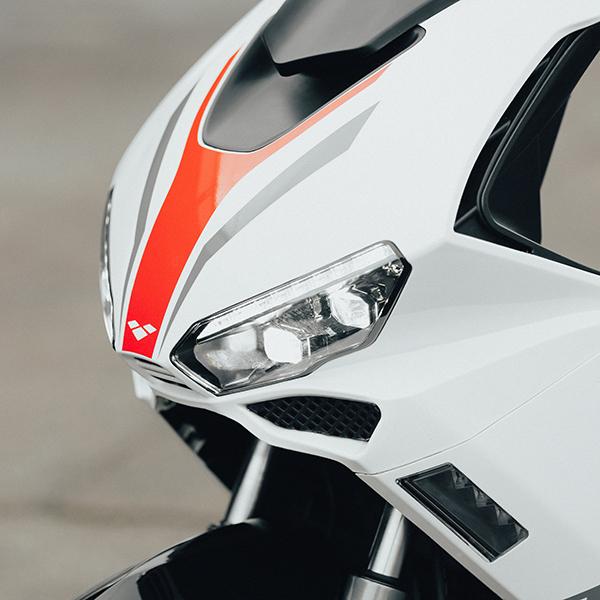

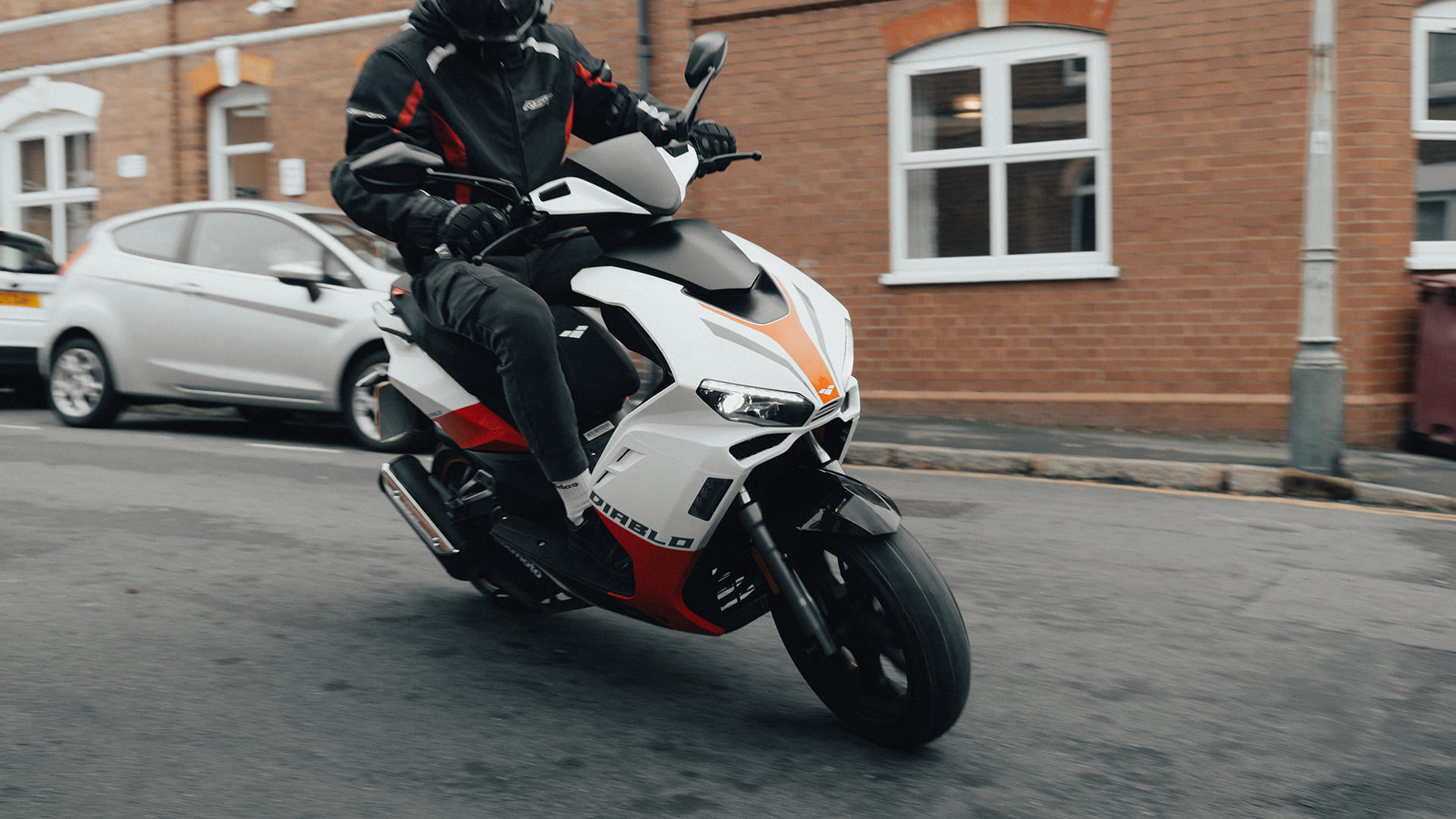

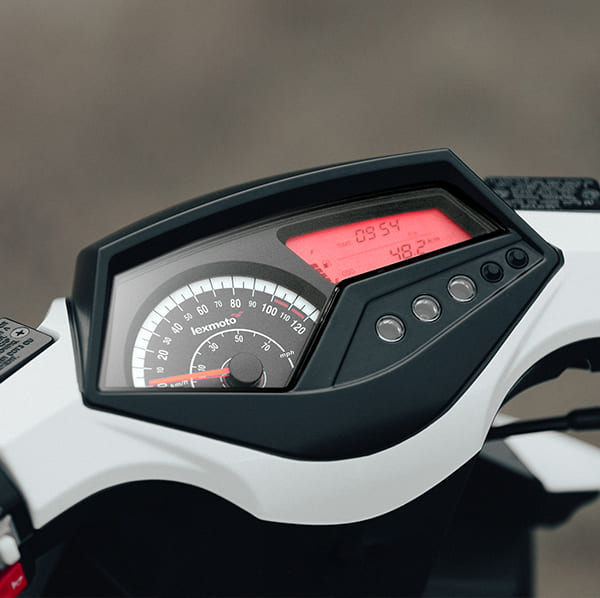

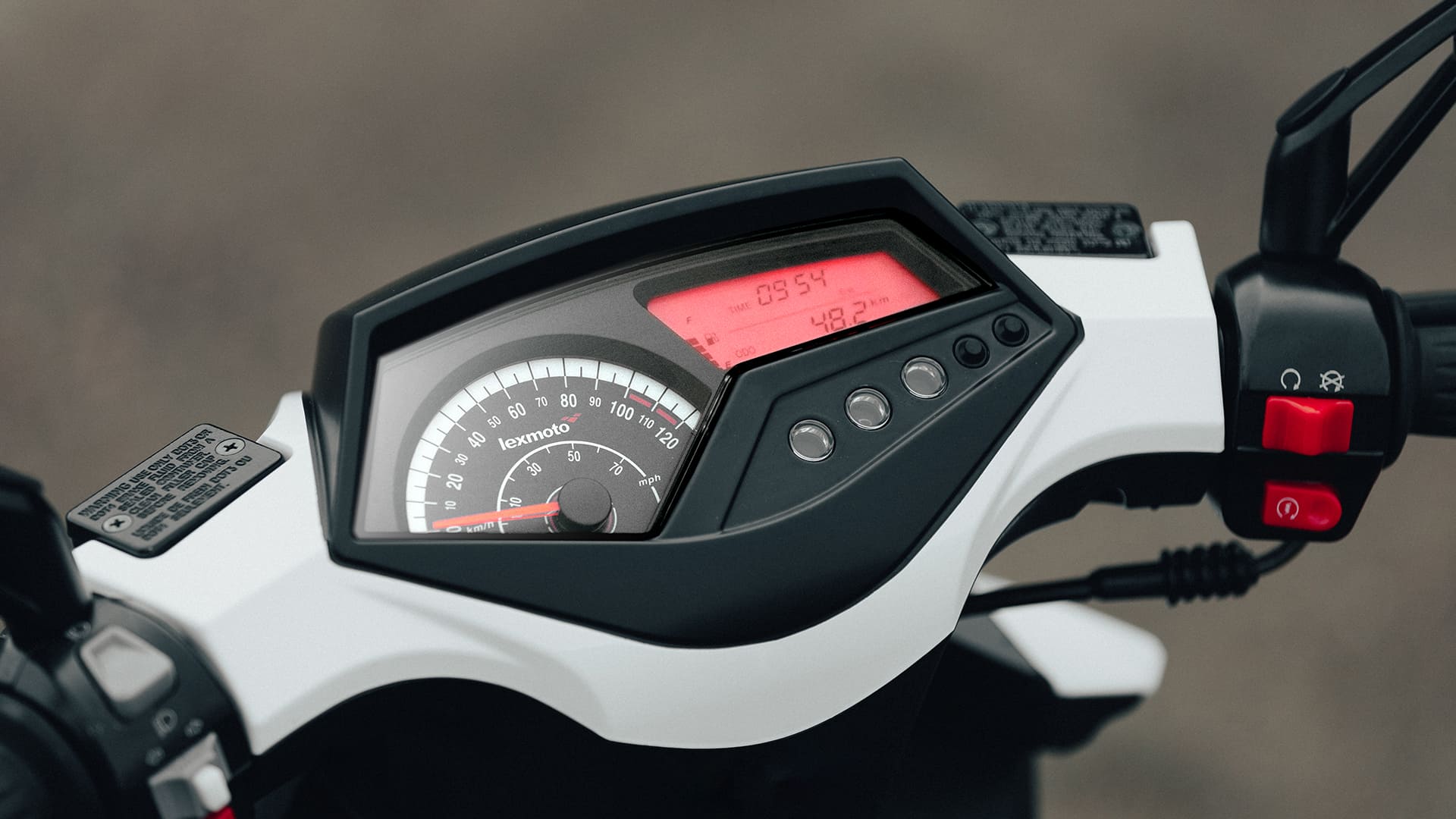

Sharp, sporty styling with an affordable price tag has made the Diablo a go-to choice for all learner legal riders making their own way in life. The racy 4 stroke engine packs a lot punch, and pair that with it`s lightweight frame the Diablo will have you flying off the line. A combined braking system with hydraulic disc brakes front and rear bring you to a safe and controlled stop every time. There`s a digital display and striking LED headlight unit that allows you to ride safely and illuminate the road ahead.


Please Note

*Price excludes OTR (On The Road) costs



Finance available on all of our models

Enquire Now!

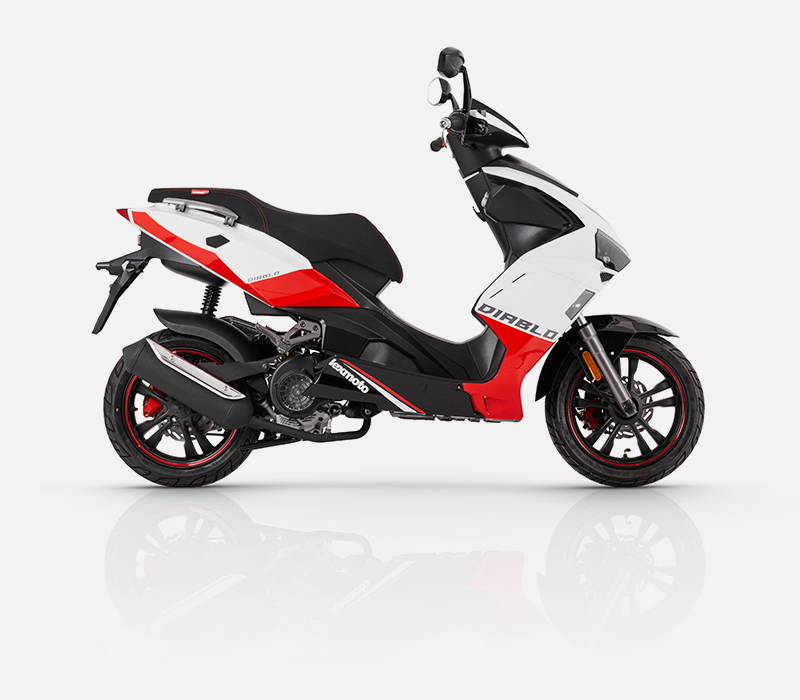

Summary image

Specifications

OVERVIEW
Model Name
Lexmoto Diablo 125
Model Code
LJ125T-9M-E5
Fuel Capacity
6 Litres
PERFORMANCE
Max Power
(8.6 hp) 6.4kW @7500rpm
Max Torque
8.6Nm @ 6000rpm
Max Speed
66 MPH (105 KMH)
ENGINE
Engine Type
Single Cylinder
Engine Stroke
4 Stroke
Engine Cooling
Air Cooled
Displacement
125 cc
Bore x Stroke
5.3 x 5.8
Gear Type
Twist and Go
Drive Type
Belt
Start Type
Electric Start
Ignition Type
EFI
Battery Voltage
12
Compression Ratio
10.5:1
WHEELS

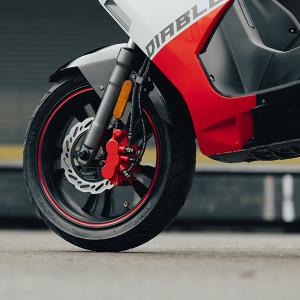

Front Brake
Hydraulic Disc
Rear Brake
Hydraulic Disc
Front Tyre
120/60-13
Rear Tyre
130/60-13
Tyre Brand
CST
Tyre Model
Tubeless
Front Suspension
Telescopic Forks

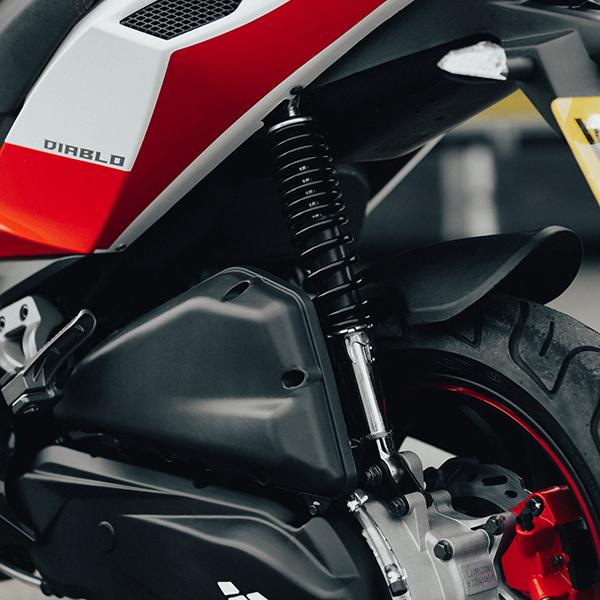

Rear Suspension
Single Shock Absorber
DIMENSIONS
Length
1840 mm
Width
690 mm
Height
1150 mm
Seat Height
790 mm
Wheelbase
1305 mm
Mass in Running Order
114 kg
Maximum Laden Mass
274 kg
