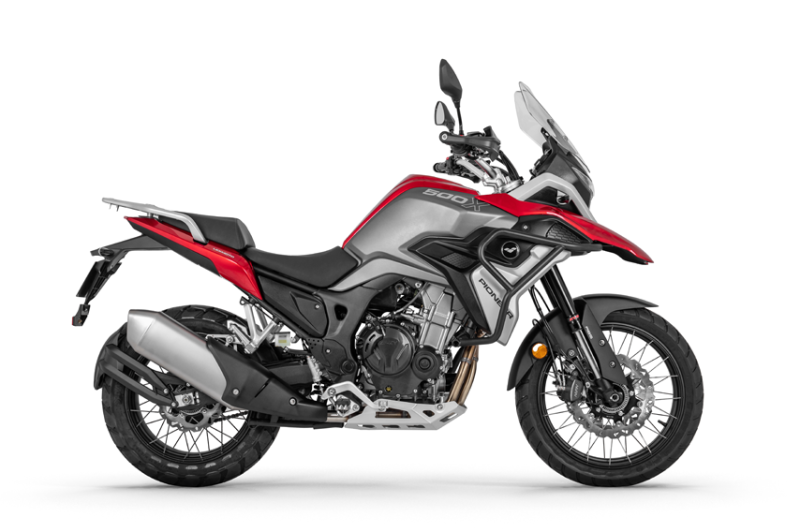

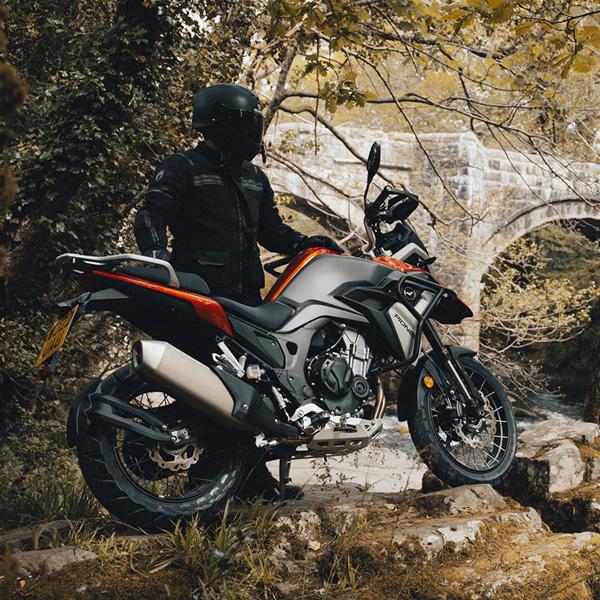

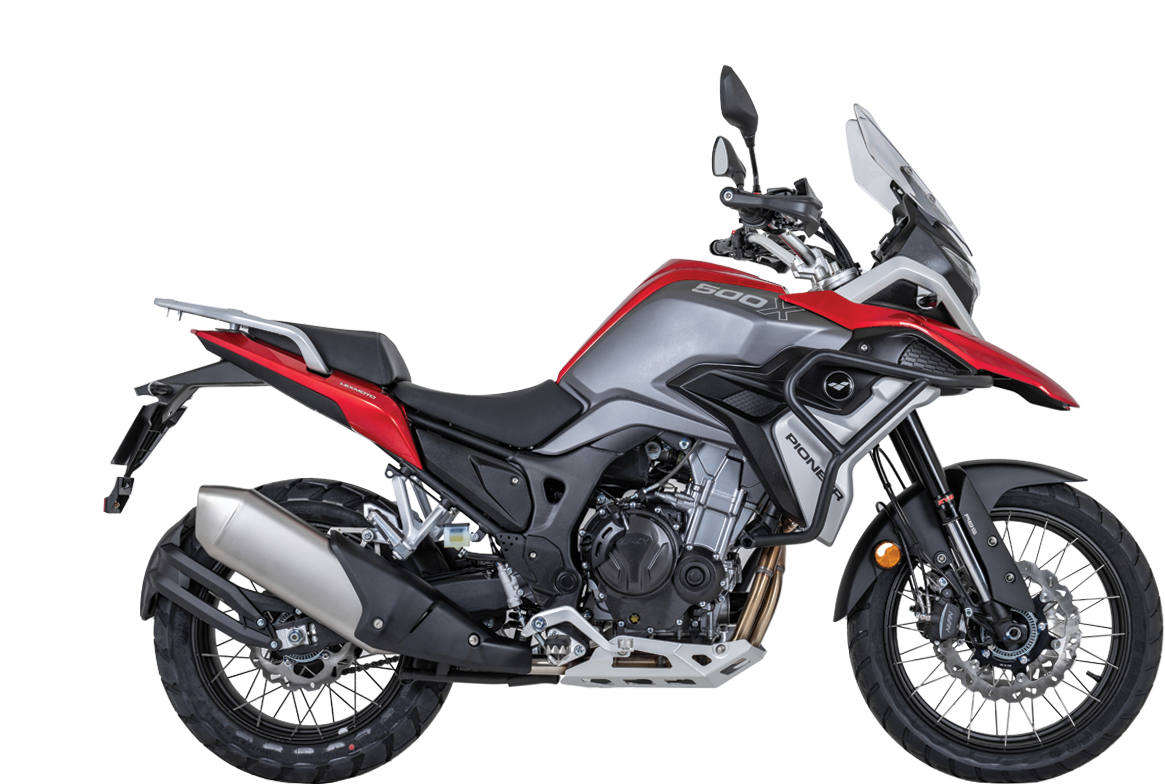

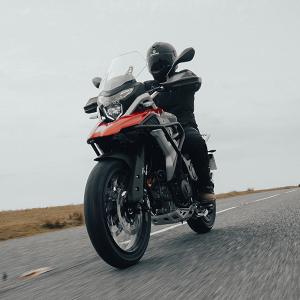

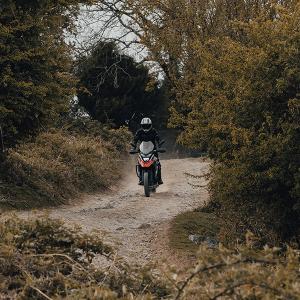

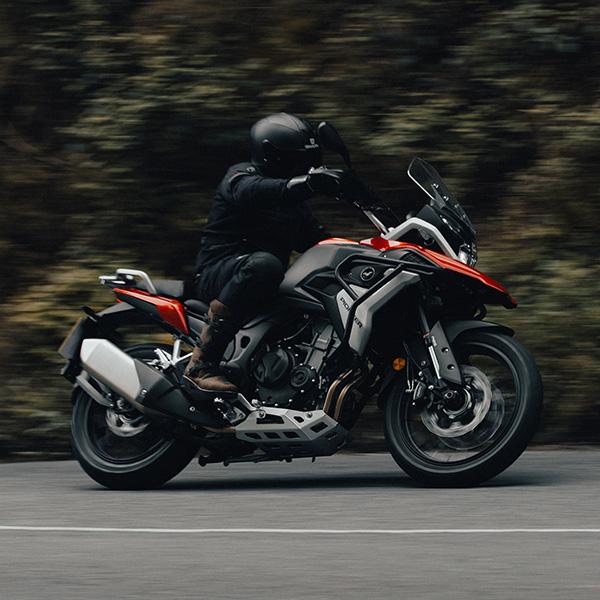

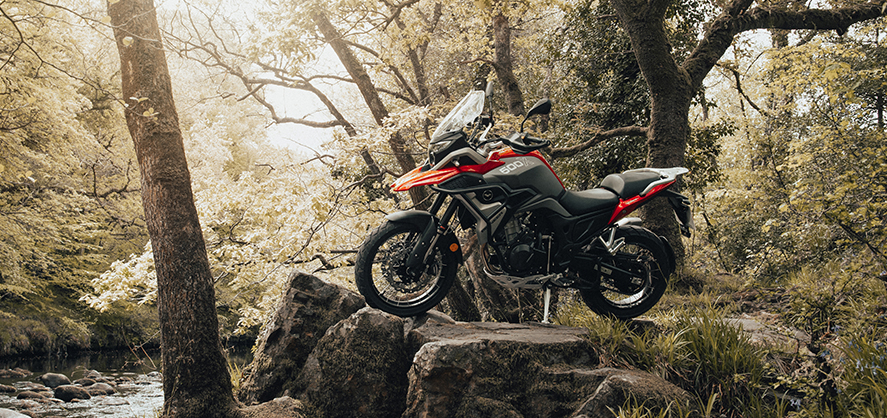

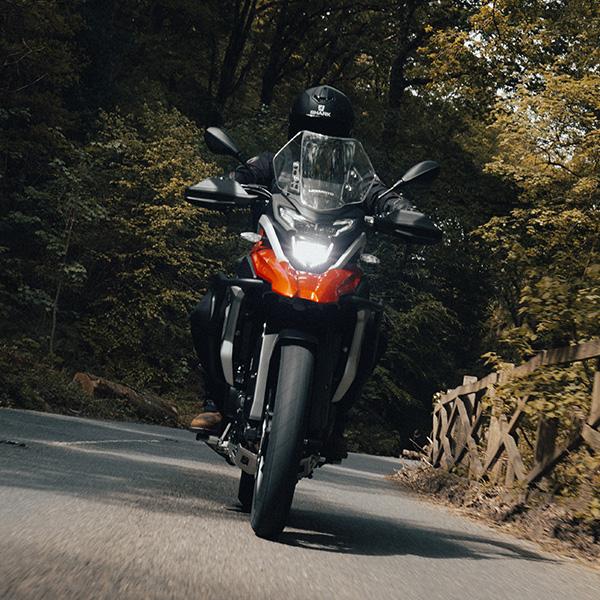

Lexmoto Pioneer 500X Overview

It`s time to discover new paths on Lexmoto`s new A2-compatiable adventure tourer.

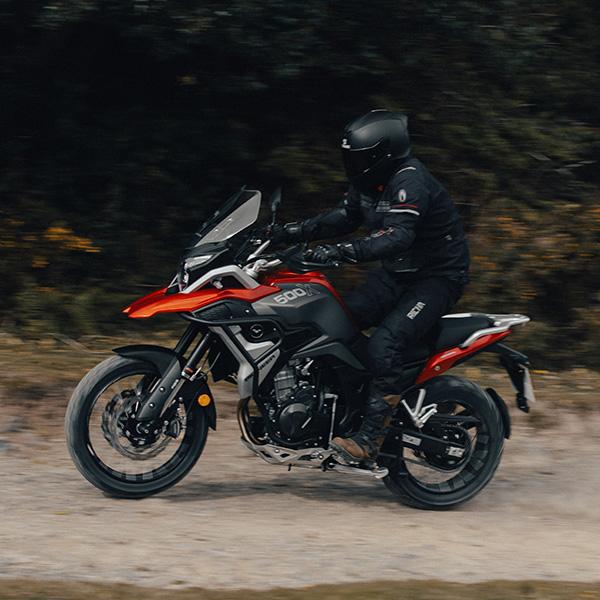

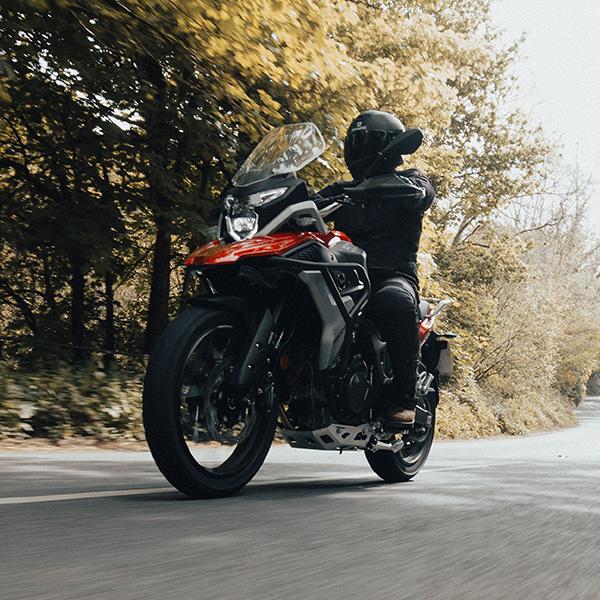

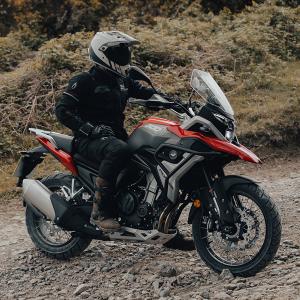

Instantly broaden your horizons with a machine that can take you anywhere you can point at on a map. Built to effortlessly glide on long distance tours, slice through morning traffic, or tackle the loosest of terrain, the Pioneer 500X is your new one-bike that does it all.

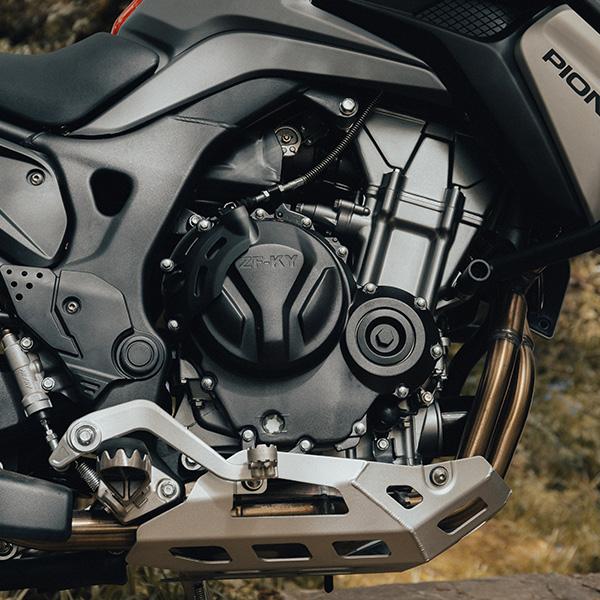

At its heart is a perky 471cc twin cylinder engine and BOSCH ECU that delivers smooth low-end torque when manoeuvring in tight situations or up steep inclines but expect high performance top end power that`ll have you flicking the bike into every S-bend.

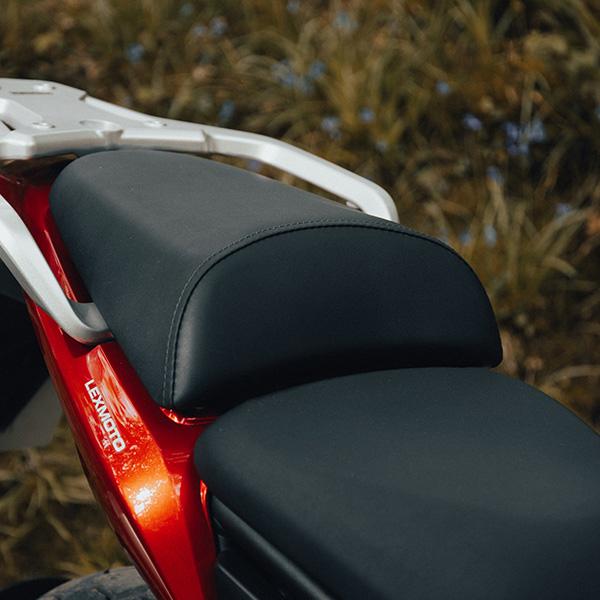

Don`t just sit on the bike, sit in it. With a seat height of 820mm that cradles you comfortably between the 20L tank and pillion seat; you`ll feel secure at any speed, on any terrain. Couple that with the multi-adjustable KYB front & rear suspension and tubeless Metzeler Cross-tourer tyres that wrap the off-road focused spoked rims, and you have yourself an extremely capable machine.

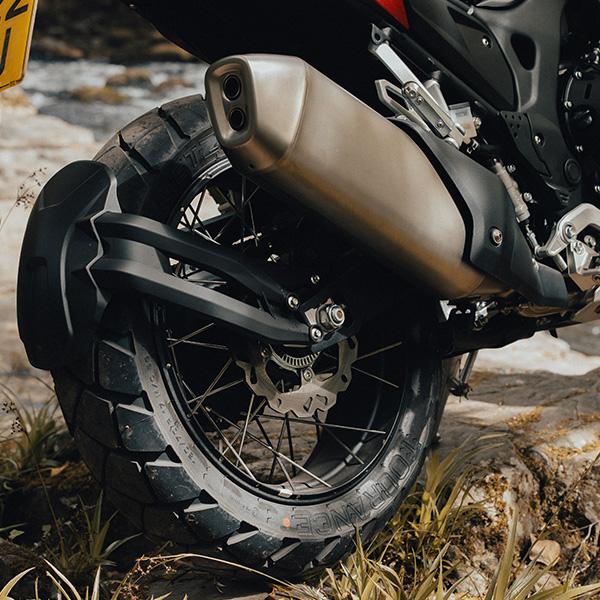

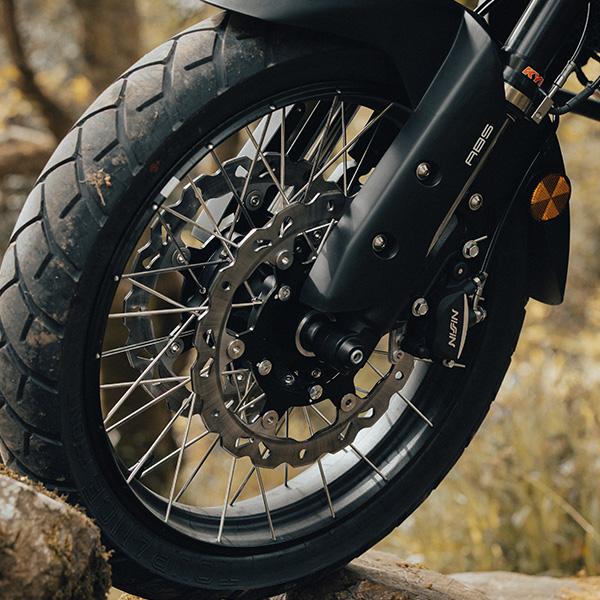

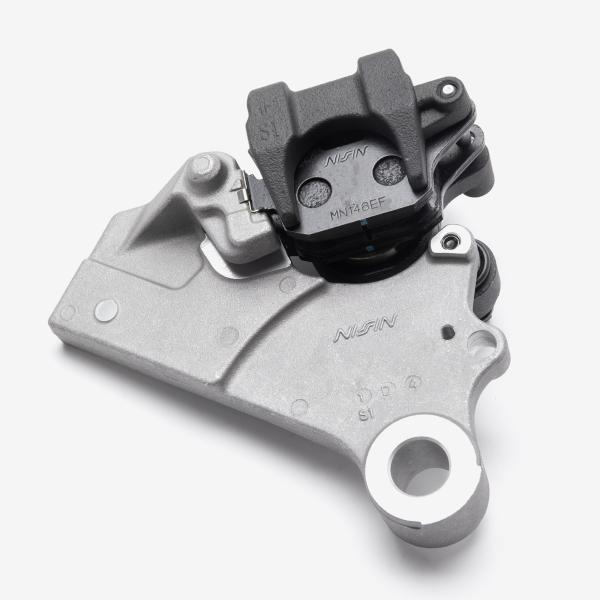

Braking performance is top-tier thanks to Nissin`s dual 298mm floating front discs and two-piston calliper front setup, with a single 240mm floating disc and single calliper to bring up the rear. Choose how you want the bike to stop with the adjustable ABS, allowing you to disconnect the rear ABS for when you need that extra feel at the back wheel.

With all that power comes great responsibility - it`s down to you to set your riding mode, Safe or Sport. We recommend using the Safe mode when riding at slower speeds, on loose gravel, or in the rain. This alters the throttle and fuelling response to be softer and prevent loss of traction through the tyres onto the road surface. Find yourself on an open B-road or fast flowing motorway traffic then it`s time to engage Sport mode for added performance.

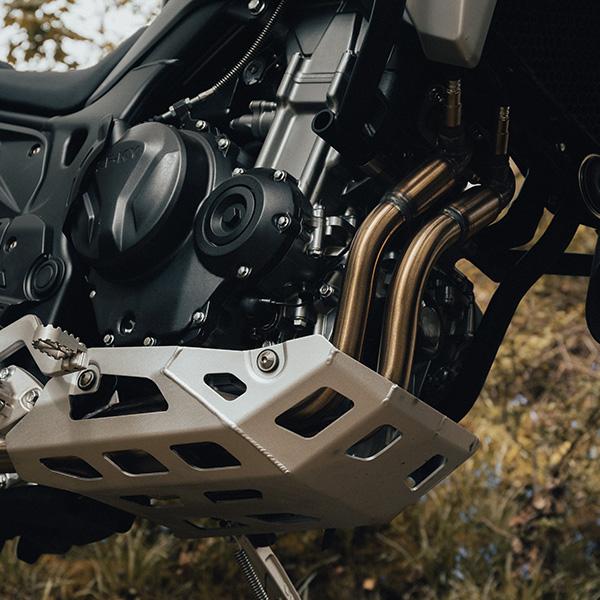

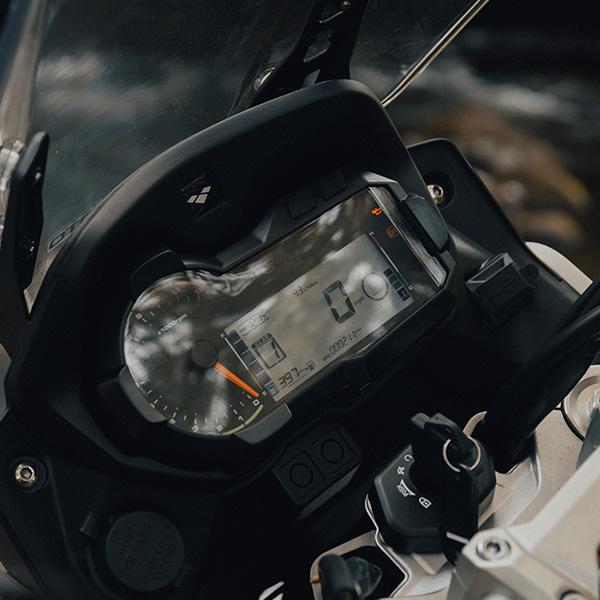

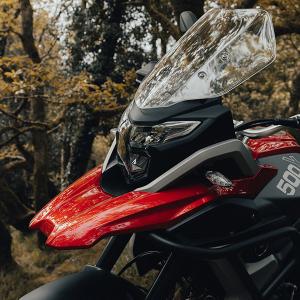

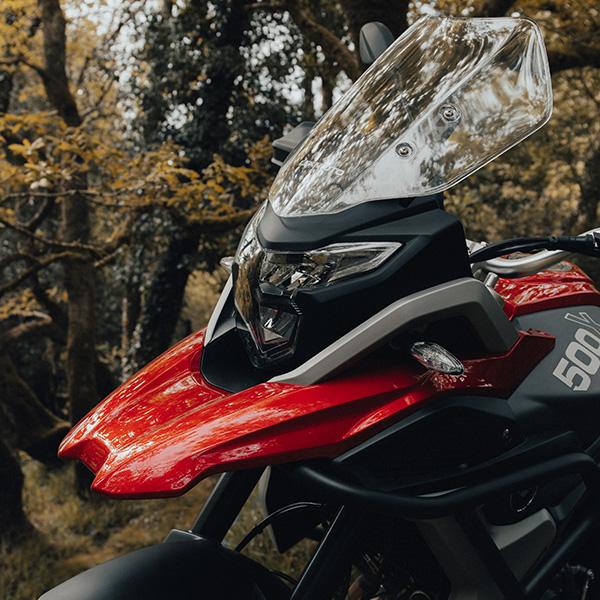

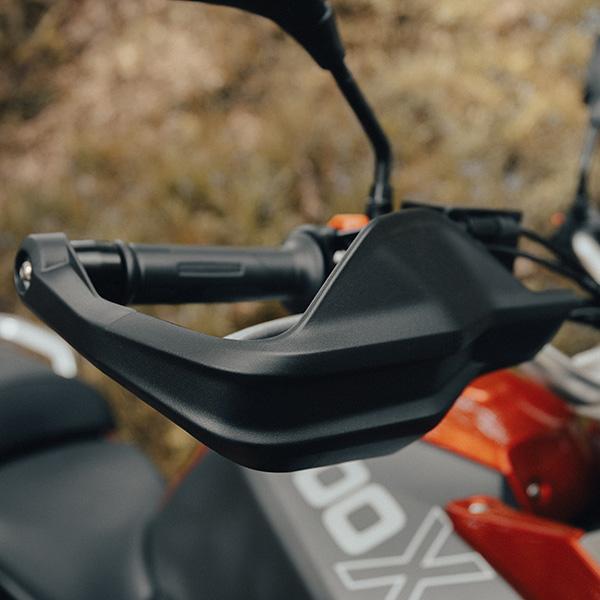

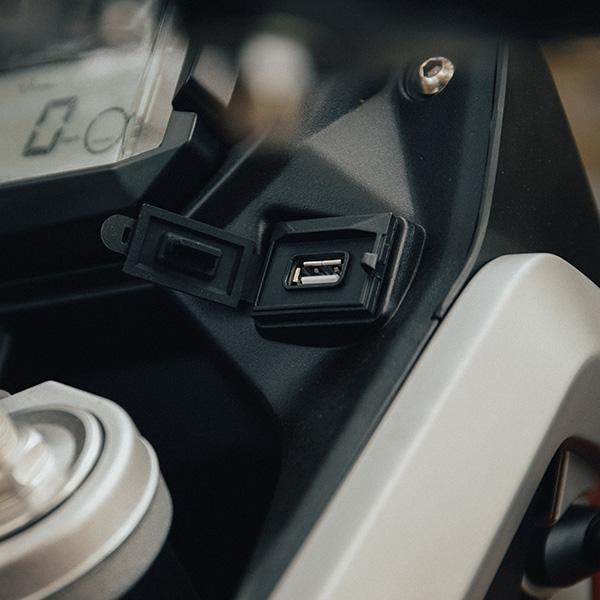

The Pioneer comes packed full of features that you should expect on any high-end adventure motorcycle with a USB and 12v charging port, adjustable front screen, hand guards, centre stand, grab rail and luggage rack, crash protection, aluminium bash plate and swingarm, LED lighting all-round, and a digital/analogue display unit.

What`s holding you back now? Get out there on the Pioneer 500X!


Please Note

*Price excludes OTR (On The Road) costs



Specifications

OVERVIEW
Model Name
Lexmoto Pioneer 500X
Model Code
KY500X-E5
Fuel Capacity
20 Litres
Fuel Consumption
55 mpg
PERFORMANCE
Max Power
(43.6 hp) 32.5KW @ 8500rpm
Max Torque
40.29Nm @ 6500rpm
Max Speed
94 MPH (150 KMH)
ENGINE
Engine Brand
Z267MR
Engine Type
Twin Cylinder
Engine Stroke
4 Stroke
Engine Cooling
Water Cooled
Displacement
471 cc
Bore x Stroke
471
Clutch Type
Hand Operated
Gear Type
6 Speed
Drive Type
Chain
Start Type
Electric Start
Ignition Type
EFI
Battery Voltage
12v
Compression Ratio
10.7:1
WHEELS
Front Brake
Hydraulic Disc
Rear Brake
Hydraulic Disc
Front Tyre
110/80-19
Rear Tyre
150/70-17
Tyre Model
Tubeless
Front Suspension
Telescopic Forks
Rear Suspension
Monoshock
DIMENSIONS
Length
2200mm mm
Width
935 mm
Height
1400mm mm
Seat Height
820 mm
Wheelbase
1479 mm
Mass in Running Order
206 kg
Maximum Laden Mass
366 kg

Lexmoto Adventure Club

Adventure club logo

A group for those taking adventures on Lexmoto bikes

Be it travelling from Land's End to John O'Groats or navigating the Pyrenees, join our club for exclusive goodies and of course, bragging rights!

Been on your own adventure?

Share your story


Adventure club image

London to Cape Town on a Lexmoto ZSB

Read Chris Allsop's legendary account of how he, a 72 year old retired banker, rode his trusty ZSB from North to South Africa:

I have just ridden from London to Cape Town (and beyond) on a very small motorbike. Alone. At the age of 72. I didn't expect to succeed. Many people shared that opinion.
...

Read more

CMPO logo

Genuine Lexmoto parts and accessories

You can find genuine Lexmoto parts and accessories on our sister website CMPO, from nuts and bolts to complete engines CMPO stocks a wide variety of parts.

Search by Reg Search by Diagram See all parts for this bike
Left Luggage Box
LGB044

Left Luggage Box

£221.49

Left Crash Bars
CRPR043

Left Crash Bars

£31.99

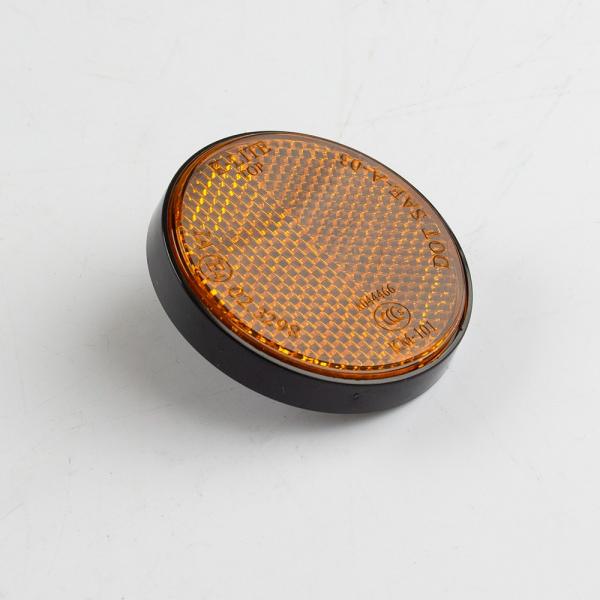

Rear Reflector
REFL031

Rear Reflector

£2.25

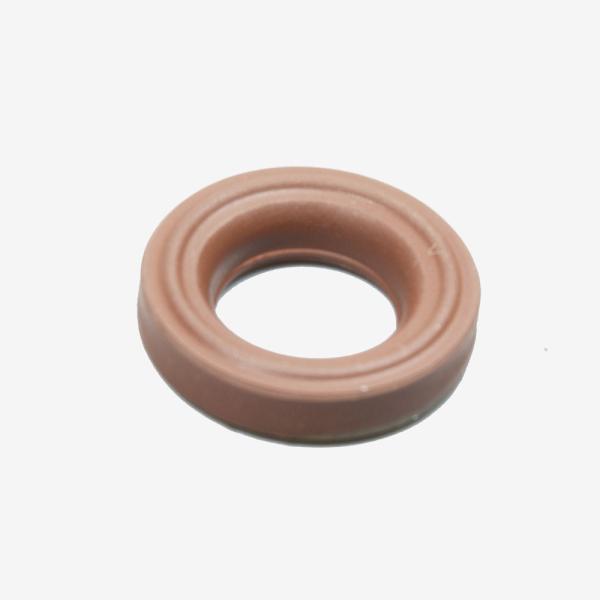

Rocker Cover Washer 11.5x22x4
WSH0045

Rocker Cover Washer 11.5x22x4

£3.58

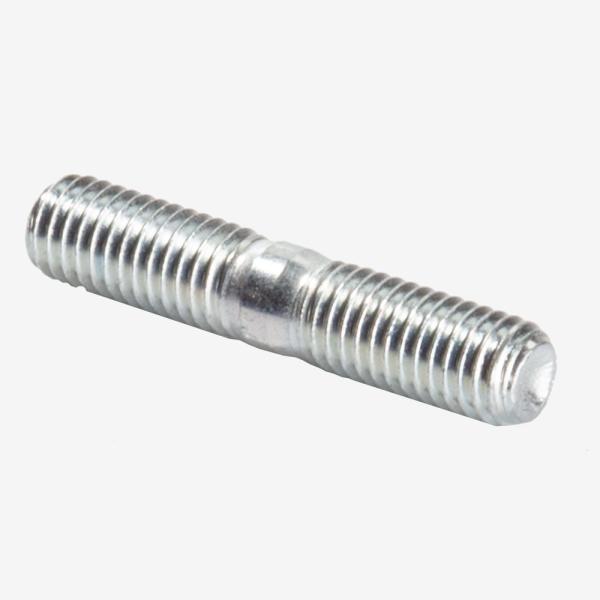

Exhaust Stud M8 x 42mm
STD002

Exhaust Stud M8 x 42mm

£1.99

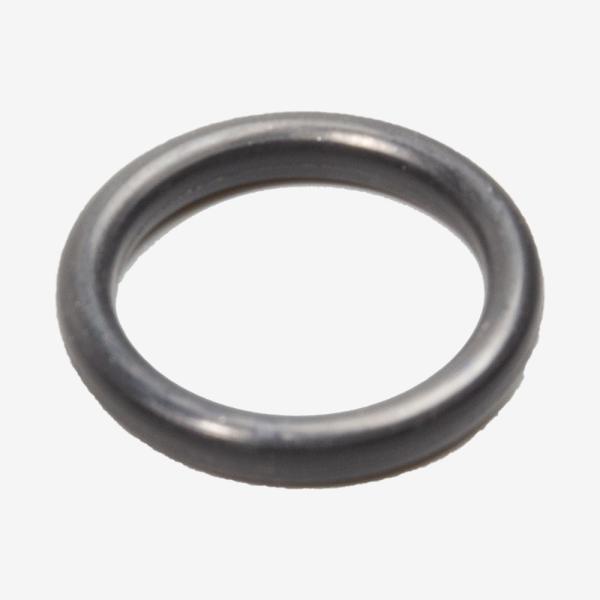

O-Ring 18 x 24 x 3mm
